Make a Multi Bit Wood Drill with your bare hands!

Drilling wood, specially if you have to do it by hand, must be done in steps: first small, then a bit larger, then to size. Or as many in-between steps as needed. Woodworkers have such collections of drills, but what about when you have to start from scratch? We start with a bit a good quality steel, that is within easy reach for many people: a bicycle spoke! This series instructions show how to make with your bare hands from a bicycle spoke a multi bit wood drill.

Author: Demotech, design for self-reliance
Version: Juli 27, 2008
Feedback email info@demotech.org
Postal: Biesenwal 3, 6211 AD Maastricht, the Netherlands
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fold here _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
1
Any hammer is ok. Instead of a sharpening stone, you can grind the spoke on the cement floor or on a stone from the river.

You can do it with your bare hands, a hammer, a stone or a file, a knife or scissers as tools. As materials you need a bicycle spoke and a strip of rubber from a car inner tyre.

Author: Demotech, design for self-reliance
Version: Juli 27, 2008
Feedback email info@demotech.org
Postal: Biesenwal 3, 6211 AD Maastricht, the Netherlands
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fold here _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
2
Just as worn-down car tires can be found as scrap in poor areas, also broken bicycle wheel can often be found.

Cut Spokes from a broken bicycle wheel. Cut with a chisel or hammer on a sharp edge of a piece of metal

Author: Demotech, design for self-reliance
Version: Juli 27, 2008
Feedback email info@demotech.org
Postal: Biesenwal 3, 6211 AD Maastricht, the Netherlands
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fold here _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3

Cut off the hook at the other end of the spoke.

Find something that works as an anvil to support the spoke during cutting.

Author: Demotech, design for self-reliance
Version: Juli 27, 2008
Feedback email info@demotech.org
Postal: Biesenwal 3, 6211 AD Maastricht, the Netherlands
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fold here _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
4
Not string enoung? Then bent over a sharp edge of a table or similar. When folden hold it in the positon as shown

Bend double, try to make a bent like in the photo. A spokeis not easy to bend, use all of your strength, then hold it like the photo.

Author: Demotech, design for self-reliance
Version: Juli 27, 2008
Feedback email info@demotech.org
Postal: Biesenwal 3, 6211 AD Maastricht, the Netherlands
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fold here _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5

Rubber Strip Binding


Author: Demotech, design for self-reliance
Version: Juli 27, 2008
Feedback email info@demotech.org
Postal: Biesenwal 3, 6211 AD Maastricht, the Netherlands
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fold here _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
6

Bent Out Ends


Author: Demotech, design for self-reliance
Version: Juli 27, 2008
Feedback email info@demotech.org
Postal: Biesenwal 3, 6211 AD Maastricht, the Netherlands
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fold here _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
7

Twist Ends Twice


Author: Demotech, design for self-reliance
Version: Juli 27, 2008
Feedback email info@demotech.org
Postal: Biesenwal 3, 6211 AD Maastricht, the Netherlands
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fold here _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8

Bent End


Author: Demotech, design for self-reliance
Version: Juli 27, 2008
Feedback email info@demotech.org
Postal: Biesenwal 3, 6211 AD Maastricht, the Netherlands
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fold here _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
9

Fold End


Author: Demotech, design for self-reliance
Version: Juli 27, 2008
Feedback email info@demotech.org
Postal: Biesenwal 3, 6211 AD Maastricht, the Netherlands
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fold here _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
10

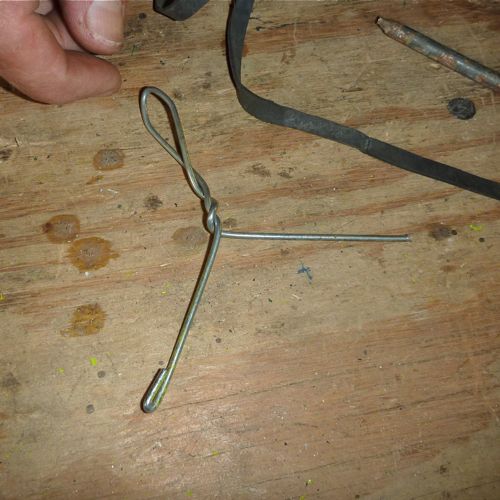

Ready For Sharpening


Author: Demotech, design for self-reliance
Version: Juli 27, 2008
Feedback email info@demotech.org
Postal: Biesenwal 3, 6211 AD Maastricht, the Netherlands
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fold here _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
11

Hammer Square


Author: Demotech, design for self-reliance
Version: Juli 27, 2008
Feedback email info@demotech.org
Postal: Biesenwal 3, 6211 AD Maastricht, the Netherlands
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fold here _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
12

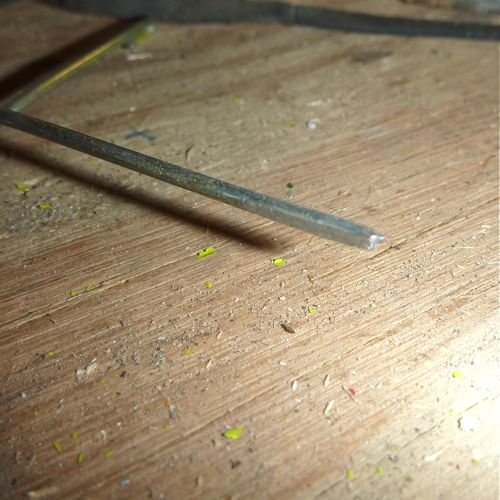

Sqaire End


Author: Demotech, design for self-reliance
Version: Juli 27, 2008
Feedback email info@demotech.org
Postal: Biesenwal 3, 6211 AD Maastricht, the Netherlands
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fold here _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
13

Hammer FoldedEnd


Author: Demotech, design for self-reliance
Version: Juli 27, 2008
Feedback email info@demotech.org
Postal: Biesenwal 3, 6211 AD Maastricht, the Netherlands
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fold here _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
14

Flattend Folded End


Author: Demotech, design for self-reliance
Version: Juli 27, 2008
Feedback email info@demotech.org
Postal: Biesenwal 3, 6211 AD Maastricht, the Netherlands
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fold here _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
15

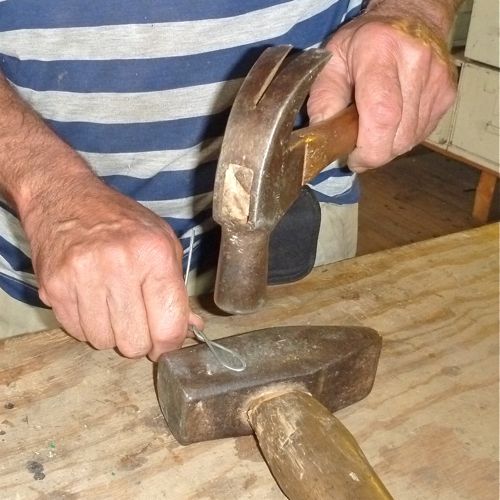

Hammer Loop


Author: Demotech, design for self-reliance
Version: Juli 27, 2008
Feedback email info@demotech.org
Postal: Biesenwal 3, 6211 AD Maastricht, the Netherlands
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fold here _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
16

Hammer Loop


Author: Demotech, design for self-reliance
Version: Juli 27, 2008
Feedback email info@demotech.org
Postal: Biesenwal 3, 6211 AD Maastricht, the Netherlands
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fold here _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
17

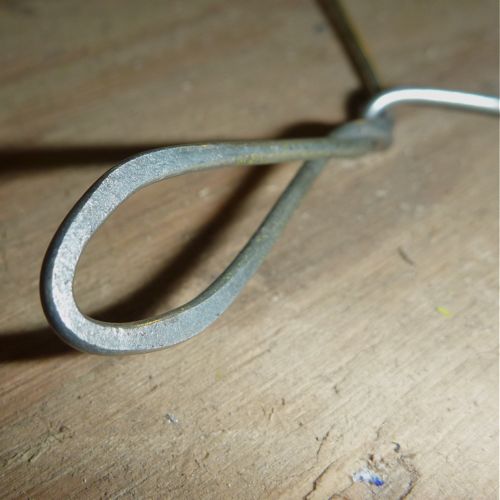

Flattend Loop


Author: Demotech, design for self-reliance
Version: Juli 27, 2008
Feedback email info@demotech.org
Postal: Biesenwal 3, 6211 AD Maastricht, the Netherlands
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fold here _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
18

File Pincer Sharp


Author: Demotech, design for self-reliance
Version: Juli 27, 2008
Feedback email info@demotech.org
Postal: Biesenwal 3, 6211 AD Maastricht, the Netherlands
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fold here _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
19

Sharpend Sqare Pincer


Author: Demotech, design for self-reliance
Version: Juli 27, 2008
Feedback email info@demotech.org
Postal: Biesenwal 3, 6211 AD Maastricht, the Netherlands
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fold here _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
20



Author: Demotech, design for self-reliance
Version: Juli 27, 2008
Feedback email info@demotech.org
Postal: Biesenwal 3, 6211 AD Maastricht, the Netherlands
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Fold here _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
21

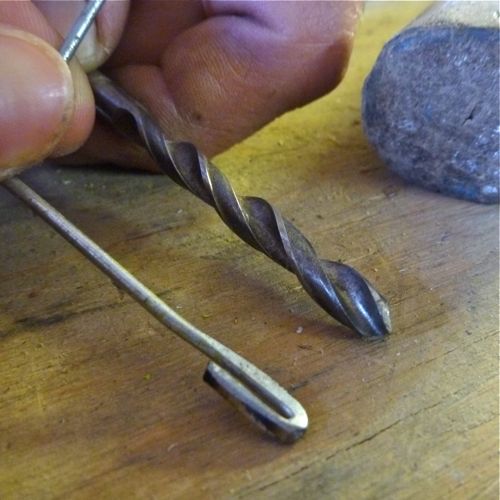

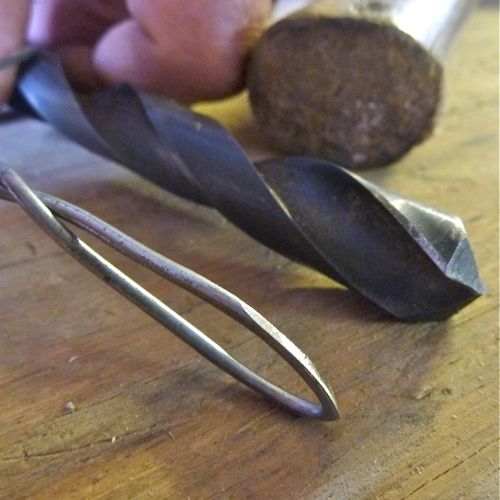

Sharpend Like Drill
